Power Supply Items

Item no. 8502266

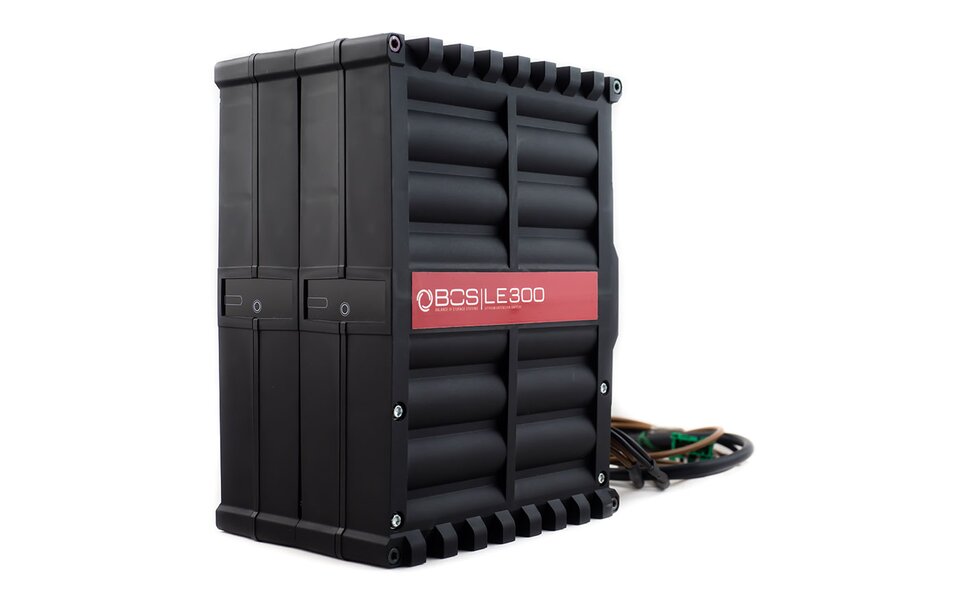

The LMC Smart Battery System combines two different types of batteries (AGM and LI-Battery), leveraging the advantages of both technologies to significantly increase battery longevity. The usable capacity remains approximately the same with significantly less space and weight.

Operating Principle:

1. Priority charging of the AGM battery
2. Full charging of the HY-Tec 50 battery
3. Discharging the HY-Tec 50 battery
4. Discharging the AGM battery (buffer storage)

Product Advantages:

• Exclusive Product: Perfectly tuned to our LMC vehicles.
• Extended Lifespan: Increases battery life from an average of about 3 years to approximately 10 years.
• Weight Savings: Approximately 20 kg lighter with one-third the dimensions of the LI battery compared to an AGM battery, with the same usable capacity as a single 95 AH AGM battery.
• Compatible Charging Technology: Existing charging technology (electrical block and possibly additional charger) remains unaffected thanks to intelligent battery management.
• Winter-Ready System: Significant advantages, especially at sub-zero temperatures, as the AGM battery begins charging from the first second and simultaneously heats the integrated heater of the HY-Tec 50 LI battery to 10°C to enable rapid charging.
• Environmental Benefit: Existing AGM batteries do not need to be disposed of and can continue to be used.
• Safety Advantage: The HY-Tec 50 battery is a Lithium Iron Phosphate battery (LiFePO4), eliminating the risk of overheating/fire.
• Immediate Charging: Immediate current uptake from engine start and throughout the drive, with no reaction time due to the startup curve of the chemical process in AGM batteries.
• Cost-Effective Entry into the LI World: The existing AGM battery can continue to be used, making it a relatively affordable entry.
• Perfect Retrofit Extension: The HY-Tec 50 2-unit block is ideal for customers looking to retrofit a second battery to increase available capacity. Unlike retrofitting with another AGM battery, the existing lead-acid battery (AGM) can continue to be used and does not need to be replaced*.
• Flexible System Expansion: The system can be easily expanded with one or more HY-Tec 50 2-unit blocks as needed, even step by step. The HY-Tec 50 LI battery can be installed in any position, and its slim design allows it to be installed in smaller niches.
• Robust Overall System: The proven lead-acid battery combined with the HY-Tec 50 LI battery provides excellent performance over a wide temperature range. Compared to pure lithium batteries, charging is also possible at temperatures below 0°C.
• Certified Quality: The HY-Tec 50 LI battery is E-approved and TÜV-tested for temperature fluctuations and vibrations.
• Made in Germany: The HY-Tec 50 LI battery is manufactured in Germany.

Dimensions: H 175 mm x L 229 mm x W 122 mm

Weight: 6.8 kg

The installation of the LMC Smart Battery System must be carried out by your LMC dealer. For further information, please contact your LMC dealer.

*Provided it is not completely defective—your LMC dealer will be happy to advise you on this.

Item no. 8502267

The LMC Smart Battery System combines two different types of batteries (AGM and LI-battery), allowing the advantages of both technologies to be utilized and significantly increasing the lifespan of the batteries. The usable capacity remains nearly identical with much less space and weight.

Operating Principle:

1. Priority charging of the AGM battery
2. Full charging of the LI 125 battery
3. Discharging the LI 125 battery
4. Discharging the AGM battery (buffer storage)

Product Advantages:

• Exclusive Product: Perfectly tuned to LMC vehicles.
• Extended Lifespan: Increases battery life from an average of about 3 years to approximately 10 years.
• Weight Savings: Approximately 10 kg lighter with slightly smaller dimensions of the LI battery compared to an AGM battery, offering nearly three times the usable capacity of a single 95 AH AGM battery.
• Compatible Charging Technology: Existing charging technology (electrical block and possibly additional charger) remains unaffected thanks to intelligent battery management.
• Under-Seat Installation: Can be mounted under the passenger seat using a special mounting plate, saving additional storage space.
• Winter-Ready System: Great advantages, especially at sub-zero temperatures, as the AGM battery starts charging from the first second and simultaneously heats the integrated heater of the LI battery to 10°C to enable quick charging.
• Environmental Benefit: Existing AGM batteries do not need to be disposed of and can continue to be used.
• Safety Advantage: The LI 125 AH battery is a Lithium Iron Phosphate battery (LiFePO4), eliminating the risk of overheating/fire.
• Immediate Charging: Immediate current uptake from engine start and throughout the drive—no reaction time due to the startup curve of the chemical process in AGM batteries.
• Cost-Effective Entry into the LI World: The existing AGM battery can continue to be used, making it a relatively affordable entry.
• Perfect Retrofit Extension: The 5-unit block is ideal for customers who want to retrofit a second battery to increase available capacity. Unlike retrofitting with another AGM battery, the existing lead-acid battery (AGM) can continue to be used and does not need to be replaced*.
• Flexible System Expansion: The system can be easily expanded with one or more 2-unit blocks as needed, even step by step. The LI battery can be installed in any position.
• Robust Overall System: The proven lead-acid battery in combination with the LI battery provides excellent performance over a wide temperature range. Compared to pure lithium batteries, charging is also possible at temperatures below 0°C.
• Fail-Safe: Even in the event of a defect in one battery module (indicated on the battery), the remaining modules remain intact as each module has its own battery management. Thus, a total failure of the electrical system or the complete battery is almost excluded.
• Certified Quality: The LI battery is E-approved and TÜV-tested for temperature fluctuations and vibrations.
• Made in Germany: The LI battery is manufactured in Germany.

Dimensions: H 175 mm x L 229 mm x W 122 mm

Weight: 17 kg

The installation of the LMC Smart Battery System must be carried out by your LMC dealer. For further information, please contact your LMC dealer.

*Provided it is not completely defective—your LMC dealer will be happy to advise you on this.

Item no. 8502287

No More Contaminated or Chlorinated Water on Vacation. No More Buying, Carrying, and Disposing of Water Bottles.

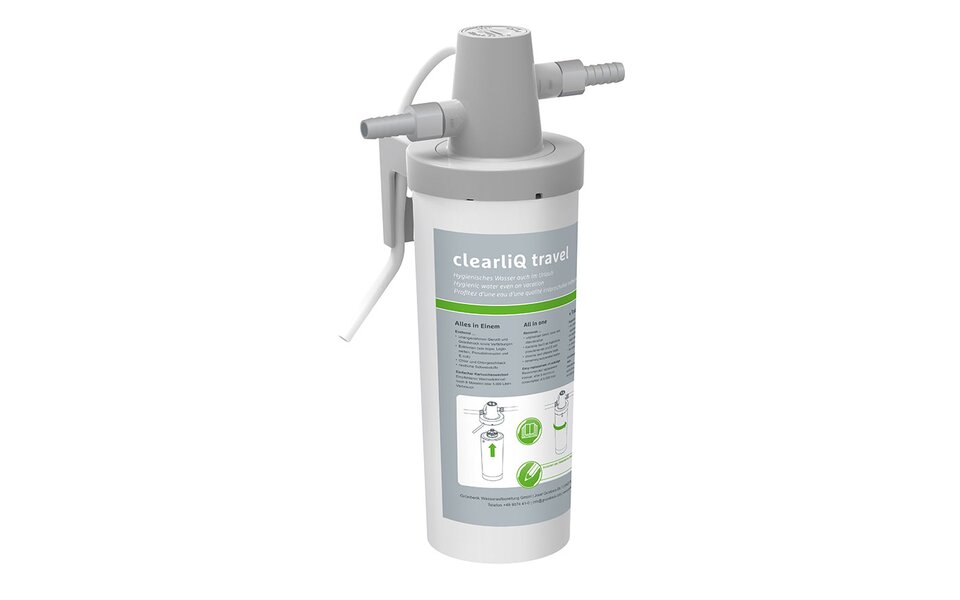

The clearliQ travel water filter powered by Grünbeck reliably filters out bacteria, such as Escherichia coli, and coarse dirt, such as sand, from tap water. It also eliminates unpleasant odors, tastes, and discolorations—all with minimal pressure loss.

The clearliQ travel water filter provides the highest level of protection for your drinking water while traveling, allowing you to enjoy hygienically pure water just like at home.

This water filter is specifically designed for LMC connection points, offering advantages in installation and ergonomic handling. The filter cartridge can be replaced under system pressure and without the need for tools. The filter's capacity is 5,000 liters or 6 months. Replacement filters for the clearliQ travel are available as single or double packs from your LMC dealer.

Note: The filter must be removed during the winter and stored in a frost-proof location.

Item no. 8502288

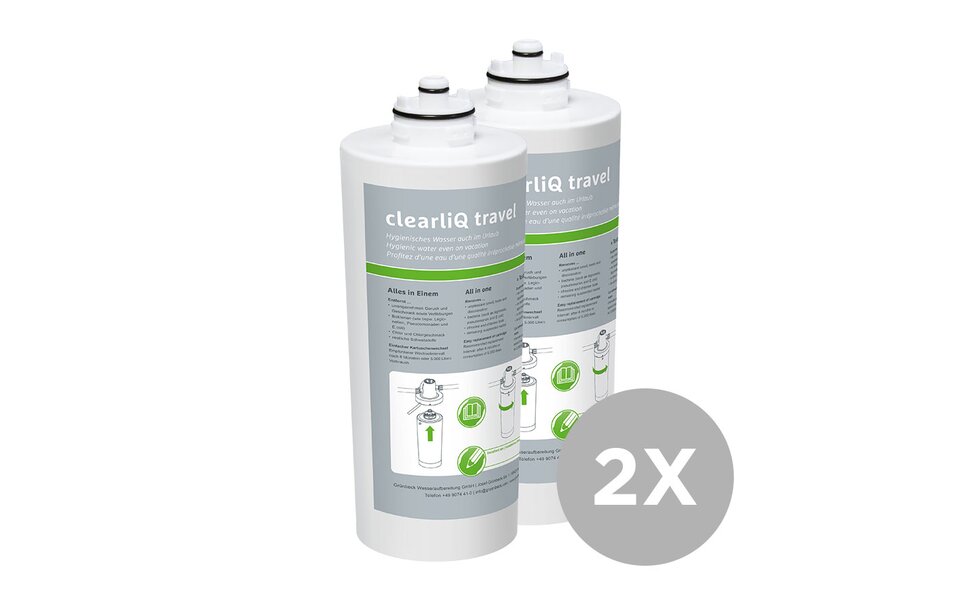

This replacement filter cartridge reliably filters out bacteria, such as Escherichia coli, and coarse dirt, like sand, from tap water. It also removes unpleasant odors, tastes, and discolorations—all with minimal pressure loss.

The filter cartridge can be easily replaced under system pressure and without the need for tools.

The filter capacity is 5,000 liters or 6 months. Replacement filters for the clearliQ travel are available as single or double packs (with a price advantage).

Item no. 8502702

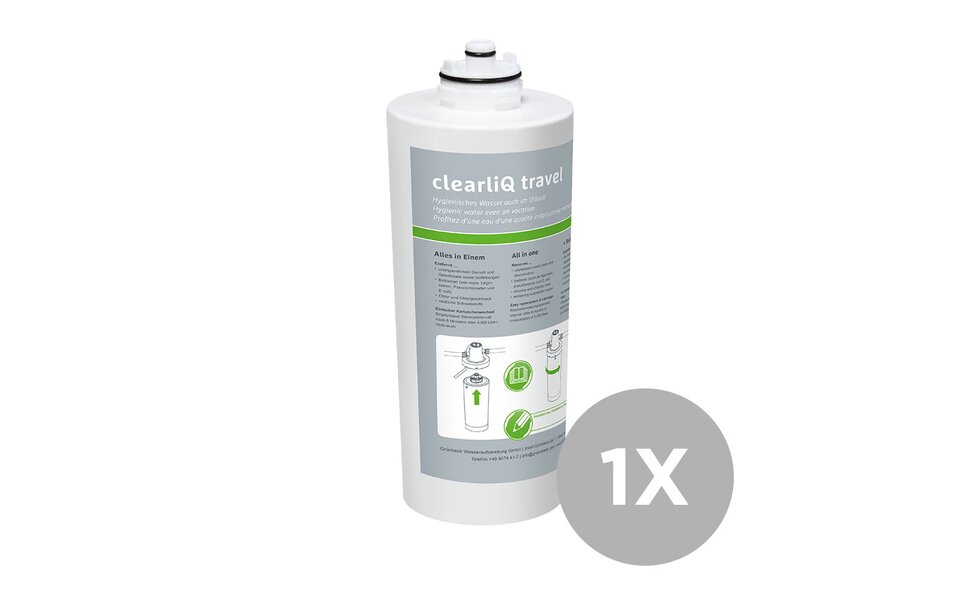

The cartridge reliably filters out bacteria, such as Escherichia coli, and coarse dirt, like sand, from tap water. It also removes unpleasant odors, tastes, and discolorations—all with minimal pressure loss.

The filter cartridge can be easily replaced under system pressure and without the need for tools.

The filter has a capacity of 5,000 liters or 6 months. Replacement filters for the clearliQ travel are available as single or double packs (with a price advantage).
